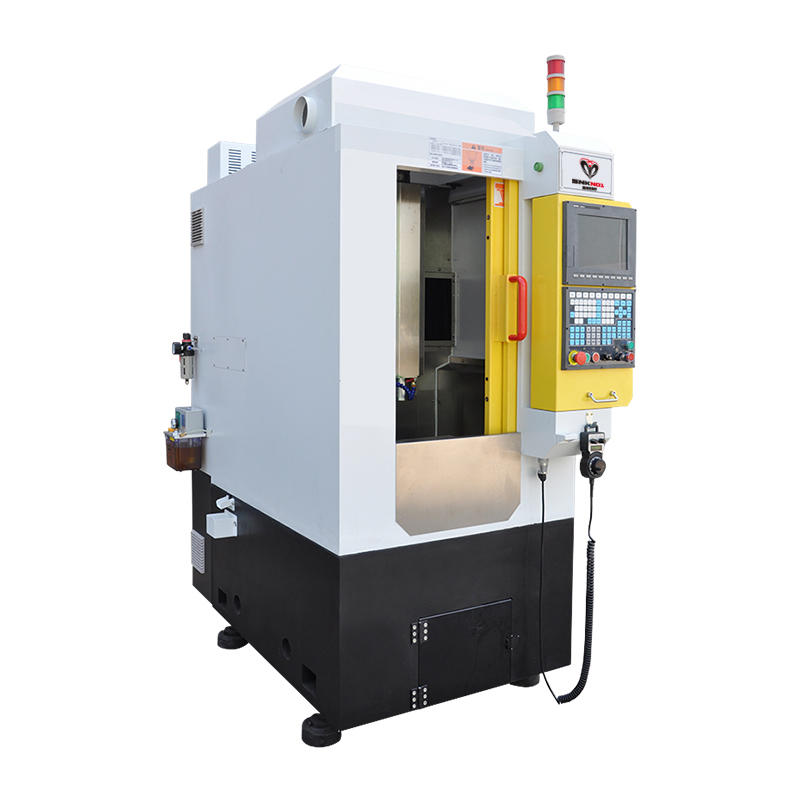

5-axis jewelry inlay an milling machine
High speed, high efficiency, high precision, reliable
The accuracy of the whole machine is applicable for a long time, ensuring high presicion displacement performance after muliple heat treaments. Quickening tool change p speed, effectively improve production efficiency and reliability with front- mounted tool holder.
[**]dopting high precision automatic tool setting instrument to improve the efficiency of adjustment.
Surface carving, lettering, batch flower... High power electric spindle and automatic tool change batch function.
It adopts stainless steel funnel type centrailized recyceling design, the whole body has just one oil outlet, the machine is highly sealed, and the recovery rate is up to 99%.
It adopts German Rexroth screw, guide rail and slider. The 5- axis adopts German original reducer and cooperates with Japanese high precision servo drive.
The linkage precision is good and the service life is long.
[**]valibable cylinder drives( six knives) and servo drive( 12 knives).
Scope of application
Gold- plated, ring, bracelet, pendant and other inlaid stone carvings
5-axis jewelry inlay and milling machine
X, Y, Z maximum stroke
1000-36000Transfer / minute (adjustable)
Servo motor power X, Y, Z
Repeated positioning accuracy
Tool clamping range
Φ1-6（Can be matchedφ8-10)
Three-axis fastest moving speed
Spindle cooling system
12 knives to the servo magazine
