High speed, high efficiency, high precision and reliable
             Through multiple heat treatment, high precision effectively for a long time, to ensure the high accuracy displacement performance
             Superposed knife library, tool change speed agility, improve the production efficiency and reliability
             With high precision automatic instrument on the knife, improve the efficiency of the machine.

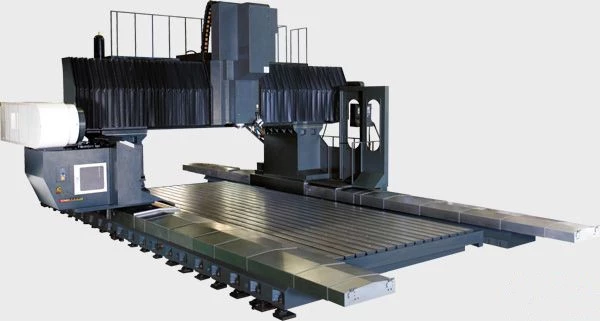

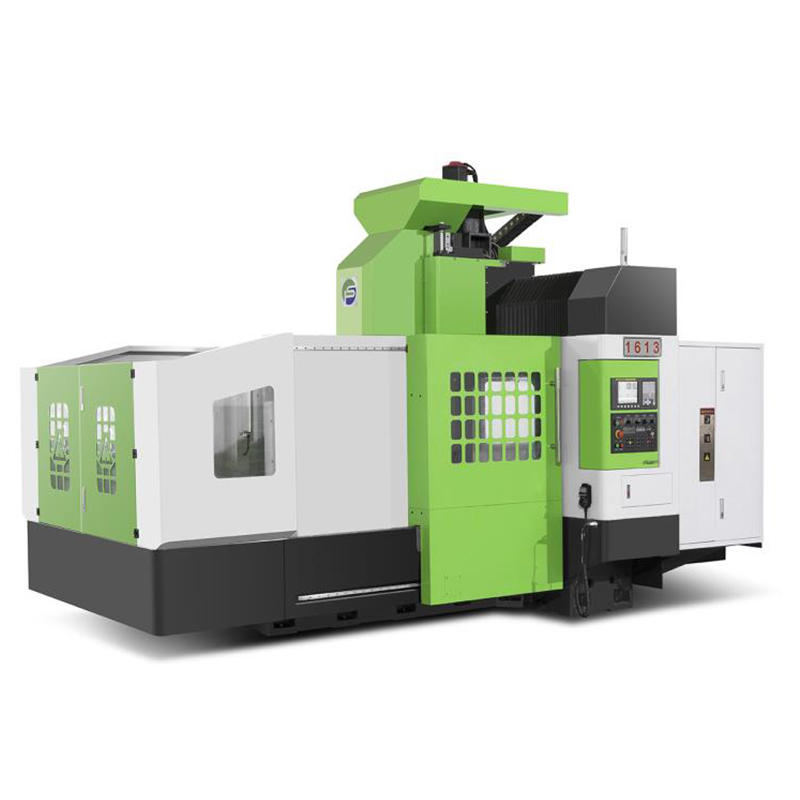

             SNK-2517 gantry processing center
             The gantry machining center adopts the workbench mobile, beam fixed gantry frame structure,
             widely used in automotive, aerospace, printing and packaging, textile machinery, metallurgy,
             petrochemical, locomotive, mold and other large and medium-sized machinery parts
             processing and mould manufacturing industry, a clamping can meet the requirements of coarse,
             half finishing and processing, can finish milling, drilling, nine, boring,
             reaming, and other processes.

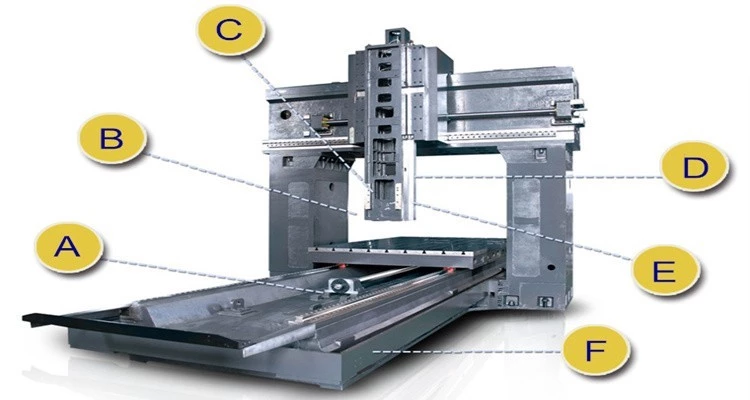

             Main structural features
             540/5000

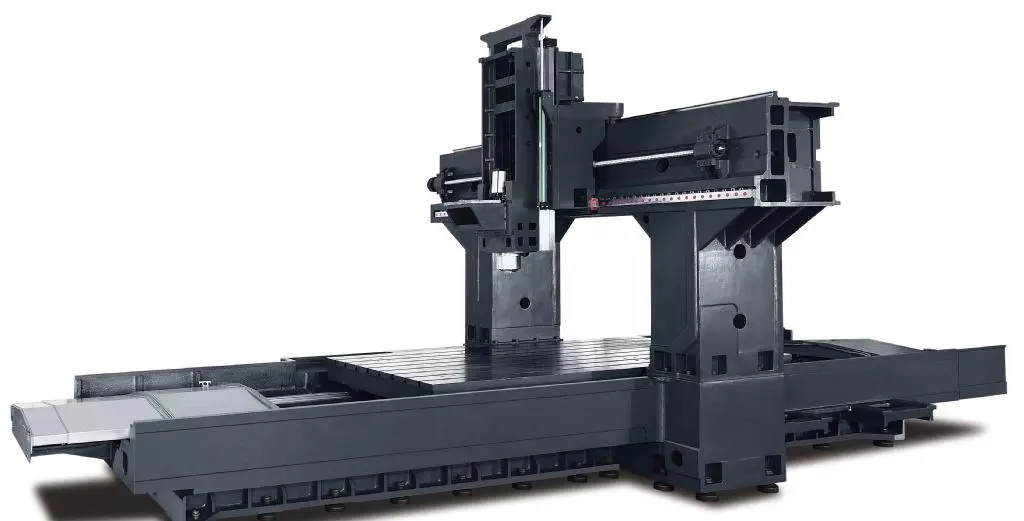

             HT300 cast iron is adopted for the base, worktable, pillar, beam, slide seat, spindle box and
             other major foundation pieces. The cabinet models , compact and reasonably symmetrical
             steel structure guarantee the high rigidity and bending and damping
             performance of the foundation pieces. The base parts are made of resin sand and experienced aging treatment,
             which provides a guarantee of the stability of the machine tool's
             long-term performance.
             Both X and Y directional guides are heavy-duty linear guides of 55 specifications imported, with features of
             fast speed, high rigidity, low friction, low noise and low temperature rise and change; The z-direction
             is the broadened rectangular sliding guide rail, and through high frequency fire
             and precision grinding, the sliding guide surface is coated with composite PTFE material and precision scraping and grinding,
             which is combined with automatic forced lubrication to improve the precision life
             and rigidity of the machine tool.
             Z drive motor has power loss braking device;
             X, Y and Z three directions adopt high rigidity double nut prepress P3 large lead screw with P3 level, high feed speed;
             [**]dopt high speed, high precision and high rigidity heavy load spindle unit produced by Taiwan professional manufacturers,
             with strong axial and radial bearing capacity and a maximum speed of 6000rpm;
             The spindle adopts a central air blowing structure, which can quickly clean the inner cone of the
             spindle with the central high pressure gas when the spindle is punched, so as to ensure the
             accuracy and service life of the spindle and tool.
             X, Y and Z direction guide rails and lead screws are protected by protective devices to ensure the
             cleaning of lead bars and guide rails, and to ensure the transmission and movement accuracy
             and life of the machine tools; Reliable centralized automatic lubrication device is adopted to automatically intermittently
             lubricate all lubrication points on the machine tool regularly and quantitatively, and the lubrication time can be adjusted

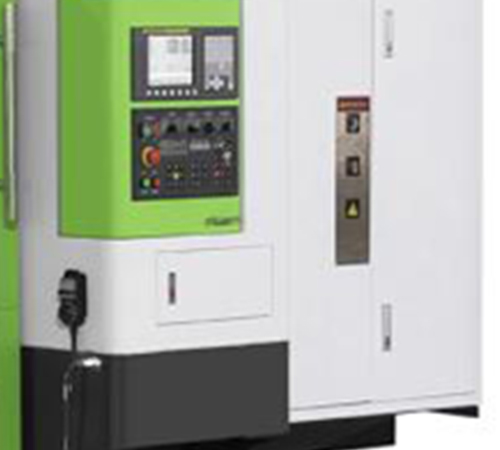

             according to the working conditions; The machine tool operating system adopts ergonomic principle, and the operating box is independently
             designed, which can rotate itself and operate conveniently. rate conveniently.
