Five-head carving and milling machine
High speed, high efficiency, high-precision, reliable

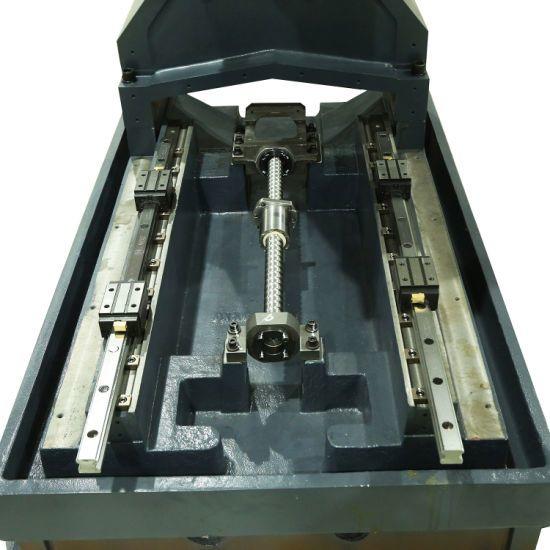

[**]fter multiple heat treatments, the accuracy of the whole machine is applicable for a long time, ensuring high precision displacement performance.

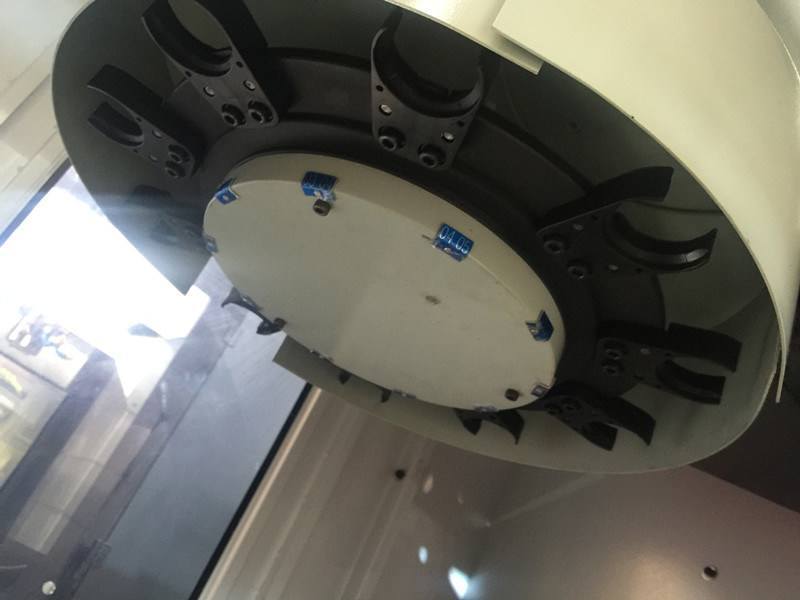

Front-mounted tool magazine, quick tool change speed, effectively improve production efficiency and reliability
[**]dopt high precision automatic tool setting instrument to improve the efficiency of adjustment.
Performance
It adopts German imported five-axis anti-collision reinforcement structure design, which has strong rigidity and good linkage effect, which is more conducive
to machining curved surface and arc surface.

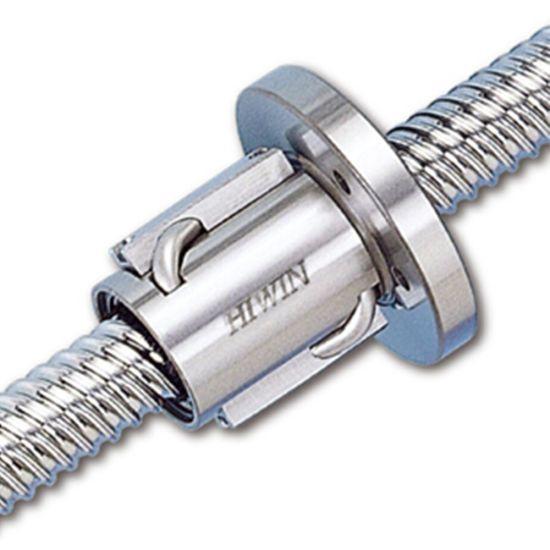

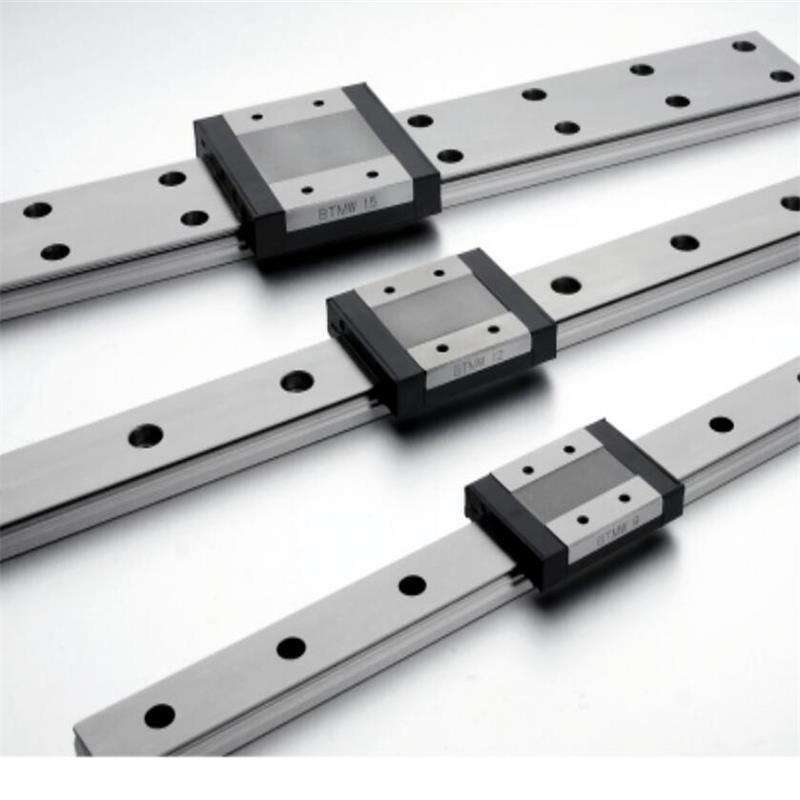

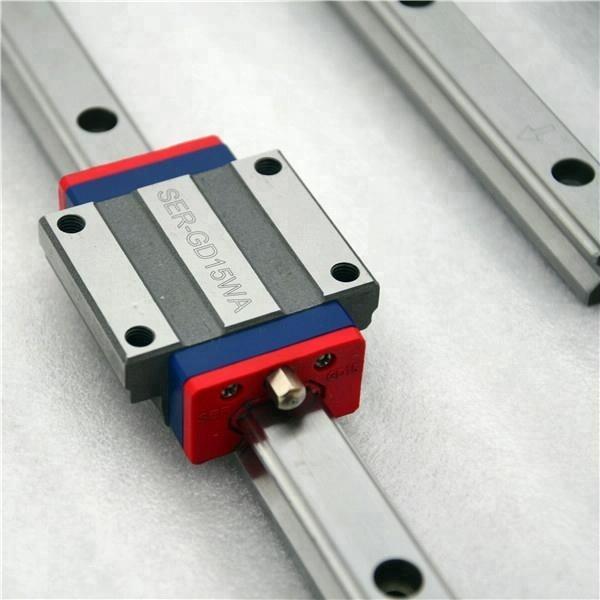

Optional German Rexroth high precision screw, guide rail, slider, with high precision servo drive imported from Japan, four spindle design, which uses various
power and speed, can be applicable to low-speed boring and milling, high-speed carving and other processing products. So that the four spindle
features do not need to change the tool.
Scope of application
Electronic cigarette accessories, mobile phone accessories, case, glasses holder, stainless steel jewelry inlay, engraving and processing.
SNK-640 | Five-head carving and milling machine |
Control System | SYNTEC / Mitsubishi / F[**]NUC |
Server system | SYNTEC / Mitsubishi / F[**]NUC |
Maximum stroke (mm) | 600*380*350 |
Workbench size (mm) | 600*400 |

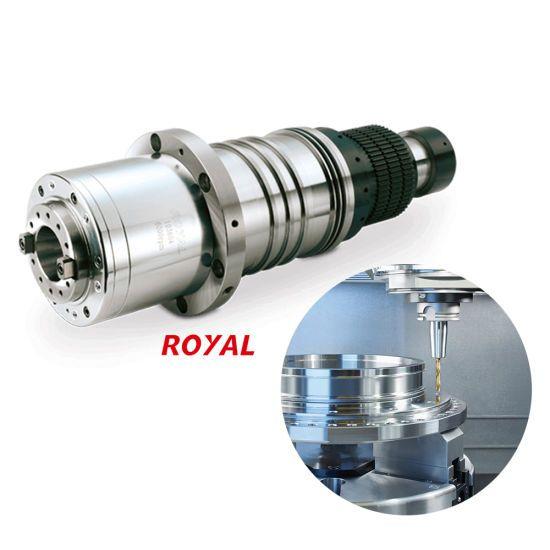

Spindle power (kw) | 3.2/2.2/1.5 |
Spindle speed | 24000/48000 |
Servo motor power (X Y Z) | 750w/750w/2.0kw |
Chuck specification | ER-20 |
Repeated positioning accuracy | 0.01(mm) |
Tool clamping range | Φ1-10 |
3-axis feed rate | 25000mm |
Spindle cooling system | Oil cooler |
4-axis splitter | Taiwan Tanzi |
5-axis reducer | German [**]lpha |
