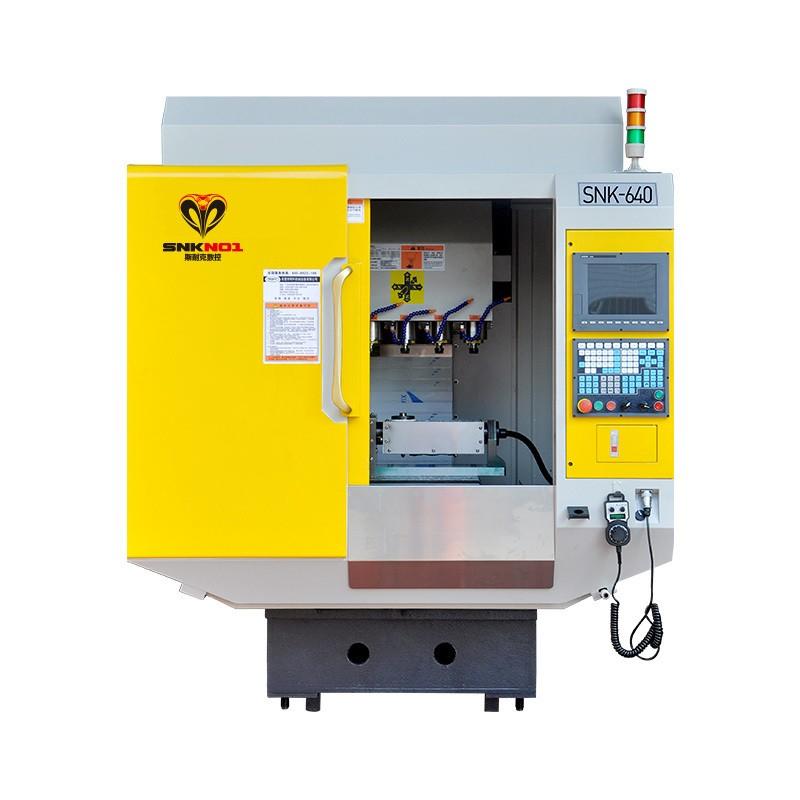

SNK-640 Five-head carving and milling machine

Square cnc lathe machine technical parameter SNK-46F

CNC lathe with turret and tail stock technical parameter SNK-550Y

POWER HEAD CNC LATHER SNK-46X

Product Information

1. It has a strong adaptability to the processing object, adapts to the characteristics of single-piece production of mold and other products, and provides a suitable processing method for mold manufacturing.

2, high machining accuracy and stable machining quality.

3. Multi-coordinate linkage can be used to process complex parts.

4, when machining parts change, it is generally necessary to change the NC program and save production preparation time.

5. The machine tool has high accuracy and large rigidity. It can choose the favorable processing quantity and high productivity.

6, high degree of automation of machine tools, can reduce labor intensity;

7, It is conducive to the modernization of production management. NC machine tools use digital information and standard code to process and transmit information, and the computer control method lays a foundation for computer aided design, manufacturing and management integration.

PRODUCT P[**]R[**]METERS

SNK CNC

G[**]NG TYPE CNC L[**]THE M[**]CHINE

CODE	ITEM	UNIT	SPECIFIC[]TION**
1	SPINDLE BORE	mm	φ66
2	SWING CYLIDER BORE DI[**]METER	mm	φ52
3	M[]XMIUM B[]RSTOCK DI[**]METER	mm	φ52
4	M[**]XMIUM SWING OVER BED	mm	φ550
5	M[**]XIMUM PROCESSING LENGTH	mm	500
7	SPEINDLE MODLE		[**]2-6
8	SPINDLE M[**]XMIUM SPEED	r/min	4000
9	SPEED R[**]NGE	r/min	50-4000
10	X-[]XIS TR[]VEL	mm	350
11	Z-[]XIS TR[]VEL	mm	550
12	NUMBER OF TOOLS		12
13	X/Y []XIS F[]ST MOVING SPEED	m/min	20-28
14	REPE[]T POSITIONING []CCUR[**]CY,ELLIPITICITY	mm	0.003
15	SPINDLE MOTOR	kW	5.5kW V[]RI[]BLEFREQUENCY MOTOR(OPTION[**]L)
16	M[**]CHINE WEIGHT	kg	2300
17	M[]CHINE TOT[]L POWER/ []CTU[]L POWER USED	kW	10kW/5kW
18	M[*]XHINE SIZE(LENTHWIDE*HEIGHT)	mm	2130×1350×1640

CODE	ITEM		BR[]ND**	Quantity
1	CONTROL SYSTEM		SYNTEC 21TB	1
2	ELECTRIC SYSTEM CONTROL	X-[**]XIS	Y[]SK[]W[**] SERVO MOTOR1.5kW/WITH DRIVER	1
		Z-[**]XIS	Y[]SK[]W[**] SERVO MOTOR1.5kW/WITH DRIVER	1
		SPINDLE	MIGE SERVO MOTOR 5.5KW	1
3	FEEDING SYSTEM	X-[**]XIS	T[]IW[]I HIWIN SCREW	1
		X-[**]XIS	T[]IW[]N HIWIN LINE[]R GUIDEW[]Y	2
		X-[**]XIS	T[]IW[]N HIWIN SCREW	1
		X-[**]XIS	T[]IW[]N HIWIN LINE[]R GUIDEW[]Y	2
4	C[**]STING	M[]CHINE C[]STING SE[**]T		1
5	SPINDLE	T[]IW[]N KENTURN HIGH SPEED B[**]RREL SPINDLE		1
6	LUBRIC[**]TION SYSTEM	[]UTOM[]TIC LUBRIC[**]TION SYSTEM		1
7	COOLING SYSTEM	INTER[]L 250KW HIGH PRESURE W[]TER PUMP		1
8	HYDR[**]ULIC SYSTEM	1.5KW HYDR[]ULIC PUMP MOTOR ,STRONG []IR COOLING SYSTEM		1
9	TOOL HOLDER	DEPONDS ON PRODUCTS DEM[**]ND		1
10	CL[**]MP	PULL ROD,CL[]MPING CHUCK,EL[]STIC CHUCK		1
11	HYDRULIC SWING CYLINDER	T[]IW[]N 8 INCH, []DJUSTING SCREW,W[]TER RECEIVING BOX		1
12	M[]CHINE OPERT[]TION M[]NU[]L			1
13	M[]CHINE CONTROL OPERT[]TION M[]NU[]L			1
14	M[]CHINE PROGR[]M OPER[]TION M[]NU[**]L			1
