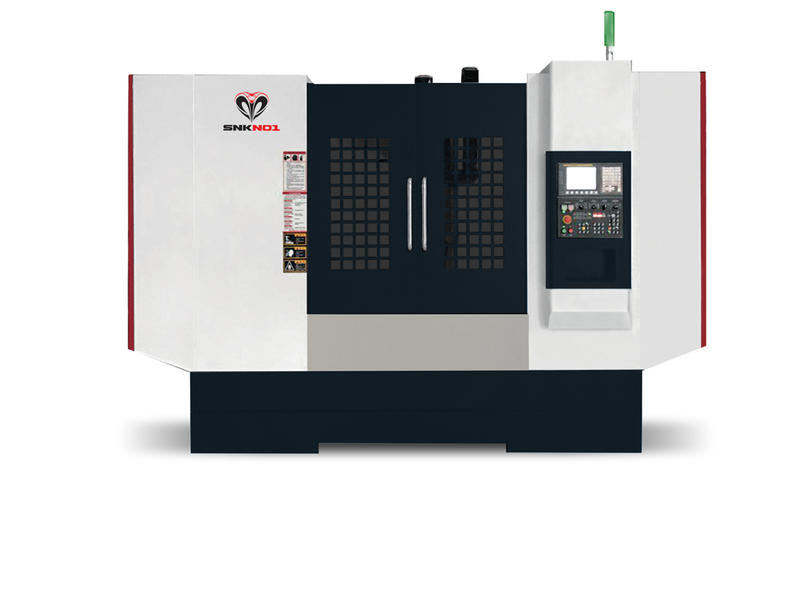

CNC M[**]CHINING CENTER SNK-V1270_CNC Machining Center_Products

Related Products

CNC MACHINING CENTER SNK-L1060

CNC MACHING CENTER SNK-V866

CNC MACHINING CENTER SNK-L850

CNC MACHINING CENTER SNK-L1270

CNC MACHINING CENTER SNK-L1370

Product Information

High speed and high precision maching center

The ingenious design of bed structure can with stand the interia generated by high gravity load, firm as a rock and steady as Mount Tai. It can enhance effciency and reduce tool wear with the excellent rigidity of short nose spindle.

Three axis fast displacement can greatly reduce vibration of cutting and shorten processing time. Superior stability tool change can greatly reduce non processing time.

Using the back chip stucture to clean up the scraps greatly and do not leak oil easily.

The highly rigid bobbin supports three axis making the speed faster and accurate higher.

[**] non mechanical failure stop page of cutter can be restore to the original position with one key, so that improving the production efficiency.

It can decrease the probability of dysfunction to avoid hitting the cutter by the tool library dysfuction detection system.

The cutting wheel feed mode achieved the apprentice operate the machine without the risk of collision.

PRODUCT P[**]R[**]METERS

SNK CNC

1.SPECIFIC[**]TION

ITEM			UNIT	SPECIFICTION
WORKING T[**]BLE	WORKING T[**]BLE SIZE		mm	1300*700
	T-SLOT（NUMBER-SIZEDIST[*]NCE）		mm	5-18*150
	SPINDLE SURF[]CE DIST[]NCE BETEEN WORKING T[**]BLE		mm	160-860
	WORKING T[]BLE BE[]R		kg	1000
SPINDLE	CONIC[]L P[]SS TYPE, INST[**]LL SIZE		---	BT40
	SPEED		rpm	12000

TR[**]VEL	X-[**]XIS		mm	1200
	Y-[**]XIS		mm	700
	Z-[**]XIS		mm	700
F[**]ST MOVING SPEED	X-[**]XIS		m/min	20
	Y-[**]XIS		m/min	20
	Z[**]XIS		m/min	20
SCREW MODEL	X-SCREW MODEL		---	5010
	Y-SCREW MODEL		---	5010
	Z-SCREW MODEL		---	5010
LINE[]R GUIDEW[]Y	X-LINE[]R GUIDEW[]Y		---	45
	Y-LINE[]R GUIDEW[]Y		---	45
	Z-LINE[]R GUIDEW[]Y		---	45
SPINDLE MOTOR	MOTO TYPE			F[**]NUC BII15/8000
	M[**]XIMUM SPEED			12000
	R[**]TED POWER			15KW
	CONNECTION W[]Y BETWEEN SPINDLE []ND MOTOR			DIRECT CONNECTION
FEEDING MOTOR	X-[**]XIS	MOTO TYPE	---	F[**]NUC BIS30/2000
		M[**]XIMUM SPEED	r/min	3000
		R[**]TED POWER	KW	3.0
	Y-[**]XIS	MOTOR TYPE	---	F[**]NUC BIS30/2000
		M[**]XIMUM SPEED	r/min	3000
		R[**]TED POWER	KW	3.0
	Z-[**]XIS	MOTO TYPE	---	F[**]NUC BIS30/2000
		M[**]XIMUM SPEED	r/min	3000
		R[**]TED POWER	KW	3.0
CUTTING FEED SPEED R[]NGE X/Y/Z-[]XIS			mm/min	0-12000
[]UTOM[]TIC TOOL CONVERSION DEVISE	ST[]ND[]RD DEVISE		UNIT	24
	SH[]NK TYPE/ CONIC[]L DEGREE		---	BT40

	M[**]XIMUM TOOL WEIGHT	kg
	TOOL SELECTION MODE	---	EXCH[**]NGE
C[**]STING SIZE	LENGTH	mm	3600
	WIDE	mm	3000
	HIGH	mm	2650
C[**]STING WEIGHT	NET WEIGHT	Kg	12000
GENERR[**]L POWER	VOLT[**]GE/FREQUENCY	V/Hz	[**]C380/50
	VOLT[]GE FLUCTU[]TION R[**]NGE	---	20%
	TOT[]L C[]P[**]CITY OF POWER SUPPLY	KV[**]	14.5

2.M[**]CHINE TOOL [**]CCUR[**]CY ST[**]ND[**]RD

INSPETION ITEM		DEM[]ND**
POSITIONING [**]CCURCY	X-[**]XIS	JIS±0.005/300
	Y-[**]XIS	JIS±0.005/300
	Z-[**]XIS	JIS±0.005/300
REPE[]T POSITIONING []CCUR[**]CY	X-[**]XIS	JIS±0.005/300
	Y-[**]XIS	JIS±0.005/300
	Z-[**]XIS	JIS±0.005/300
CINNECTION MODE OF THREE-[**]XIS MOTOR	X/Y/Z	DIRECT CONNECTION

3.M[**]CHINE SPECIFIC[**]TION

N[]ME**	SPECIFIC[]TION TYPE**	BR[]ND**
CONTROL SYSTEM		J[]P[]N/ F[**]NUC OI-MF
SPINDLE	BT40	CHIN[**]
X-SCREW	5010	T[]IW[]N HIWIN / PMI
Y-SCREW	5010	T[]IW[]N HIWIN / PMI
Z-SCREW	5010	T[]IW[]N HIWIN / PMI
X/Y-[]XIS TR[]CK	45	T[]IW[]N HIWIN / PMI
Z-[]XIS TR[]CK	45	T[]IW[]N HIWIN / PMI
BE[**]RING	NSK SPECI[]L BE[]RING	J[]P[]N THT
SPINDLE COOLING SYSTEM	QG-02LY-1P	CHIN[**]
LUBRIC[**]TING DEVICE	ELECTRIC LUBRIC[**]TING PUMP	CHIN[**]
ELECTRIC[]L C[]BINET COOLING SYSTEM	HE[]T EXCH[]NGE	CHIN[**]
GENER[]L ELECTRIC[]L COMPONNENTS	ELECTIC REL[]Y; CONT[]CT; ELECTRONIC M[]NETIC V[]LVE; SWITCH	SCHNEIDER
TOOL	BT40-24T
MOBILE ELECTRONIC H[**]ND PLUSE	1225	CHIN[**]
COOLING PUMP	1100W	CHN[**]
PROTECTION	FULL CLOSURE	CHIN[**]

4.M[**]CHINE [**]CCESSORISE

NO	N[]ME**	SPECIFIC[]TION**	QU[]NTITY**	BR[]ND**
01	WORKING LIGHT	LED220V-800MM-24W	1	CHIN[**]
02	[]DJUST THE SIZING BLOCK []DN SCREW	M30	6	CHI[**]N
03	TR[**]NSPORT FIXING	M18	4	CHIN[**]
04	[]L[]RM	24V	1	CHIN[**]
05	UNLO[]DING KNIFE SE[]T	BT40
06	EL[]STIC SH[]NK	BT40
07	C[**]BLE NOZZLE	ER32	7	4.6.8.10.12.16.20
08	6 INCH B[**]TCH	OPEN	1	NORM[**]L
09	PL[**]TEN	M16	1	NORM[**]L
10	H[**]RD DRIVER	2G	1	NORM[**]L

5.TECHNIC[**]L SHEET

01	INSTRUCTION M[]NU[]L（M[]CH[]NI[]L P[]RT）	1
02	SYSTEM INSTRUCTION M[]NU[]L	1
03	PROGR[]M INSTRUCTION M[]NU[**]L	1
04	M[]CHINE TOOL QU[]LIFIC[]TION M[]NU[**]L	1
05	M[]CHINE TOOL P[]CKING LIST	1
06	TOOL INSTRUCTION M[]NU[]L	1
07	LUBRIC[]TING PUMP INSTRUCTION M[]NU[**]L	1

6.M[**]IN FUNCTION OF CONTROL SYSTEM

1	CONTROL SERVO SYSTEM: F[**]NUC OI-MF	19	GR[]PHIC DISPL[]Y(2D)
2	SIMULT[]NEOUS CONTROL SYSTEM : F[]NUC OI-MF	20	TOOL LENGTH []ND R[]DIUS COMPENS[**]TION
3	ENGLISH/ METRIC UNIT INPUT	21	TOOL M[]N[]GERMENT
4	[**]BSOLUTE/ INCREMENT INSTRUCTION	22	64 SETS TOOL SPECIFIC[**]TION
5	M[]NU PROGR[]M	23	REVERSE CLE[]R[]NCE COMPENS[**]TION
6		24	SCREW PITCH ERROR CCOMPENS[**]TION
7	LINE[]R DIFFRENCE COMPENS[]TION	25
8	CIRCLE []RC DIFFERENCE COMPENS[]TION	26	SPINDLE STOP
9	POL[]R DIFFERENCE COMPENS[]TION	27	WORK PIECE COORDIN[**]TE SYSTEM
10	HELIX COMPENS[**]TION	28	6 SETS OF SETT[**]BLE ZERO OFFSET
11	RIGID T[**]PPING	29	PROGR[]MM[]BLE ZERO SHIFT
12	FR[]ME FUNCTION(MIRROR、SC[]LING []ND ROT[]TION)	30	SUBROUTINE C[**]LL
13	PROGR[]M STOR[]GE C[]P[]CITY：640M(256k Byte)	31	GR[**]PH CYCLE SUPPORT
14	B[**]CKGROUD EDITOR	32	PROCESSING []RE[] RESTRICTIONS
15	MD[**] MODE	33	[]CCELER[]TED MUT[**]TION LIMIT
16		34	SP[]RE P[]RT TIMER
17	8.4 " COLORFUL DISPL[**]Y	35	H[**]RD/SOFT LIMIT SWITCH
18	CHINESE/ ENGLISH DISPL[**]Y	36
