1. It has a strong adaptability to the processing object, adapts to the characteristics of single-piece production of mold and other products, and provides a suitable processing method for mold manufacturing.
2, high machining accuracy and stable machining quality.
3. Multi-coordinate linkage can be used to process complex parts.
4, when machining parts change, it is generally necessary to change the NC program and save production preparation time.
5. The machine tool has high accuracy and large rigidity. It can choose the favorable processing quantity and high productivity.
6, high degree of automation of machine tools, can reduce labor intensity;
7, It is conducive to the modernization of production management. NC machine tools use digital information and standard code to process and transmit information, and the computer control method lays a foundation for computer aided design, manufacturing and management integration.

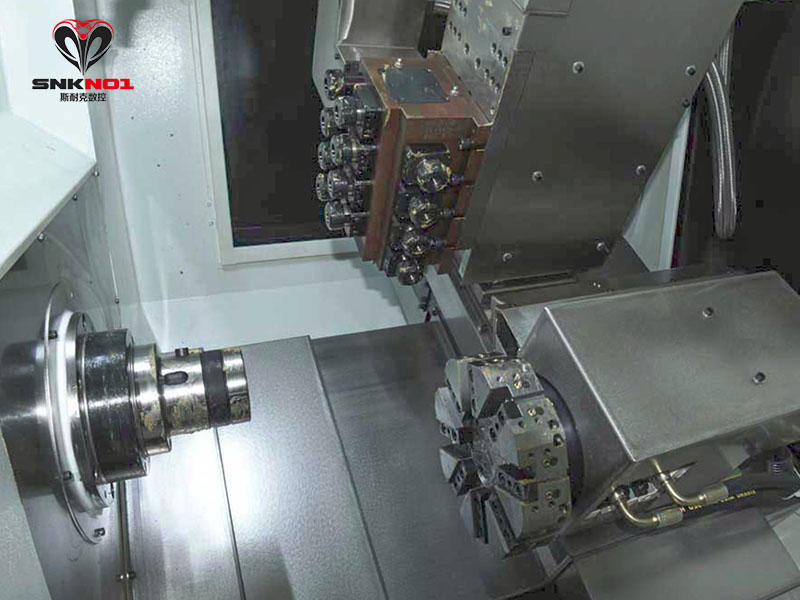

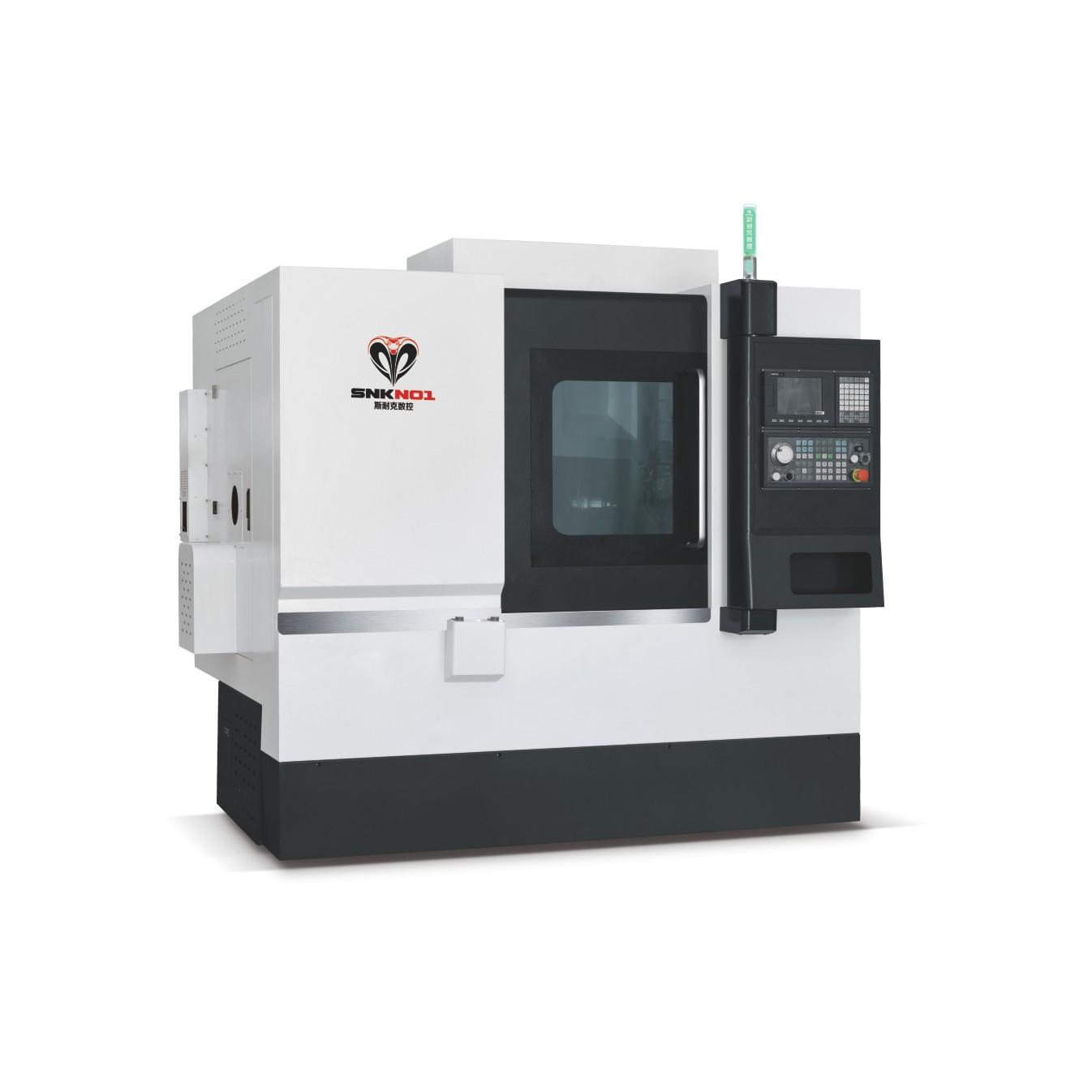

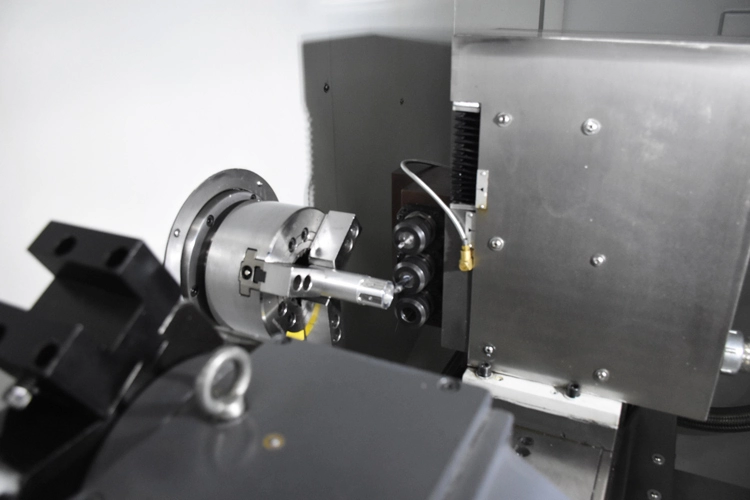

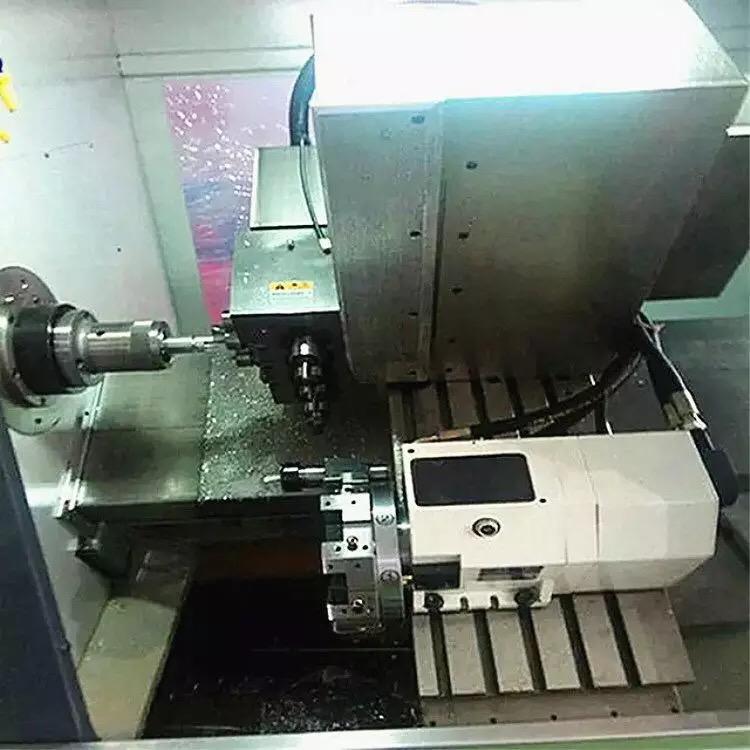

GANG TYPE CNC LATHE MACHINE
CODE | ITEM | UNIT | SPECIFICATION |
1 | SPINDLE BORE | mm | φ46 |
2 | SWING CYLIDER BORE DIAMETER | mm | φ46 |
3 | MAXMIUM BARSTOCK DIAMETER | mm | φ45 |
4 | MAXMIUM SWING OVER BED | mm | φ400 |
5 | HEIGHT BETWEEN TURRET AND SPINDLE CENTER | mm | 60 |
6 | BED STRUCTURE | ∠35 SLOT CASTING | |
7 | SPEINDLE MODLE | A2-5 | |
8 | SPINDLE MAXMIUM SPEED | r/min | 4000 |
9 | SPEED RANGE | r/min | 10-4000 |
10 | X-AXIS TRAVEL | mm | 950 |
11 | Z-AXIS TRAVEL | mm | 400 |
12 | NUMBER OF TOOLS | 8-12 | |
13 | X/Y AXIS FAST MOVING SPEED | m/min | 20-28 |
14 | REPEAT POSITIONING ACCURACY,ELLIPITICITY | mm | 0.003 |
15 | SPINDLE MOTOR | kW | 7.5kW |
16 | MACHINE WEIGHT | kg | 3500 |
17 | MACHINE TOTAL POWER/ ACTUAL POWER USED | kW | 15kW/7kW |
18 | MAXHINE SIZE(LENTH*WIDE*HEIGHT) | mm | 2500×1700×1950 |
CODE | ITEM | BRAND | Quantity | |
1 | CONTROL SYSTEM | SYNTEC 21TB | 1 | |
2 | ELECTRIC SYSTEM CONTROL | X-AXIS | YASKAWA SERVO MOTOR1.5KW/WITH DRIVER | 1 |
Z-AXIS | YASKAWA SERVO MOTOR1.5KW/WITH DRIVER | 1 | ||
| Y-AXIS | YASKAWA SERVO MOTOR 1.3KW | |||
SPINDLE | SYNTEC SERVO MOTOR 11KW/WITH DRIVER | 1 | ||
3 | FEEDING SYSTEM | X-AXIS | TAIWAI HIWIN SCREW | 1 |
TAIWAN HIWIN LINEAR GUIDEWAY | 2 | |||
X-AXIS | TAIWAN HIWIN SCREW | 1 | ||
TAIWAN HIWIN LINEAR GUIDEWAY | 2 | |||
4 | SPINDLE | TAIWAN KENTURN HIGH SPEED BARREL SPINDLE | 1 | |

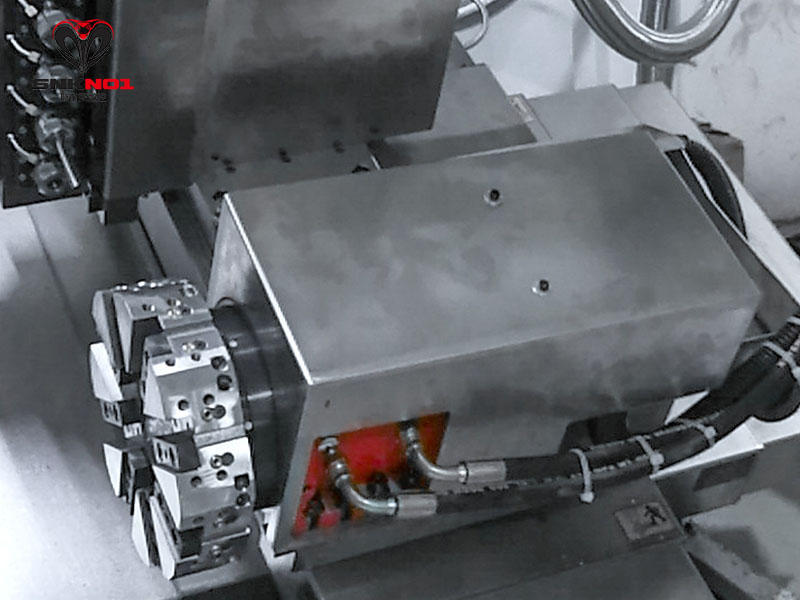

| 5 | HYDRAULIC TURRET | TAIWAN 12 SERVO TURRET | ||
6 | LUBRICATION SYSTEM | COMPUTER AUTOMATIC LUBRICATION SYSTEM | 1 | |
| 7 | LIFTINH POWER HEAD | 4 VERTICAL AND 4 HORIZONTAL GEAR HEADS | ||
8 | COOLING SYSTEM | INTERAL 250KW HIGH PRESURE WATER PUMP | 1 | |
9 | HYDRAULIC SYSTEM | 0.75KW HYDRAULIC PUMP MOTOR ,STRONG AIR COOLING SYSTEM | 1 | |
10 | HYDRULIC SWING CYLINDER | TAIWAN 6 INCH, ADJUSTING SCREW,WATER RECEIVING BOX | 1 | |
11 | MACHINE OPERTATION MANUAL | 1 | ||
12 | MACHINE CONTROL OPERTATION MANUAL | 1 | ||
13 | MACHINE PROGRAM OPERATION MANUAL | 1 | ||
