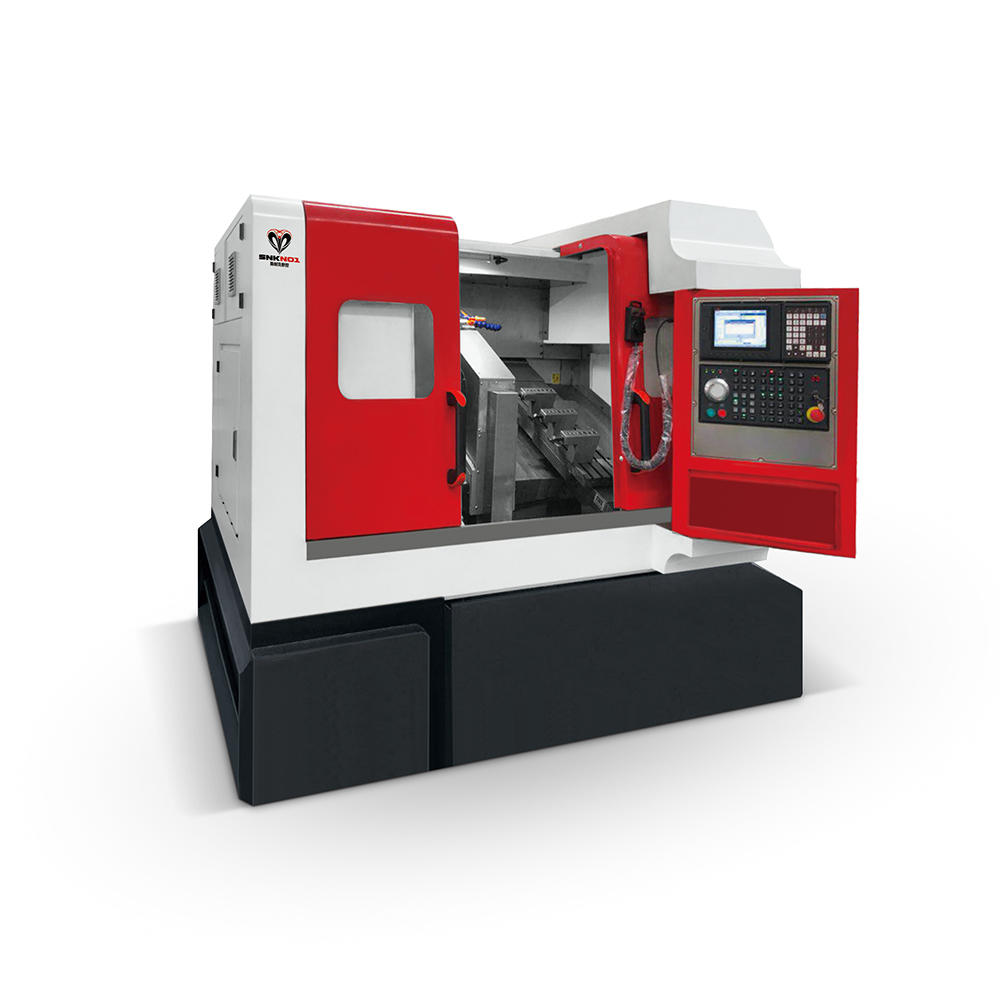

Double-headed CNC lathe
1. Highly flexible.
There is no need to adjust machine tools frequently. Thus, the production preparation cycle is shortened, and the cost of a large number of process equipment is saved.
2. High machining accuracy.
The machining accuracy is generally 0.05 to 0.1MM and the positioning accuracy is quite high.
3. Stable and reliable processing quality
The same batch of parts, in the same machine tool, under the same processing conditions, using the same tool and processing procedures, the tool path is exactly the same, the consistency of parts is good, the quality is stable.
4, High productivity
It effectively reduced the processing time and auxiliary time of parts, It's fast spindle sound speed and big feed range allowed the machine tool to carry out heavy cutting with the large amount. Rapid movement and positioning of moving parts of NC machine tools and high-speed machining greatly improve productivity. In addition, with the tool library of the machining center, it can realize the continuous processing of multiple processes on a machine tool, reduce the turnaround time between processes of semi-finished products, and improve the productivity.
5, Improve working conditions.
The machines are adjusted , inputed procedures and then start before processing, machine tools can continuous processing until the end of processing. [**]ll the operators have to do is input, edit, loading and unloading of parts, preparation of cutting tools, observation of machining status, inspection of parts and so on. The labor intensity is greatly reduced, and the labor of machine tool operators tends to be intelligent. In addition, machine tools are generally combined, clean and safe.
Parameter Name | Technical Data | SNK-J72P |
Chuck type | J72 | |
Hydraulic holder | Maximum speed | 280rpm |
Spindle motor power | 3.7KW | |
Electrical parameters | X/Z axis servo motor power | 1.0KW/1.0KW |
Swing diameter on the bed | 250mm | |
Processing range | Swing diameter on pallet | 100mm |
Optimum machining diameter | 5-70mm | |
Maximum machining length | 150mm | |
Working length range | 50-450mm | |
Repeated positioning accuracy | 0.003mm | |
Precision range | X/Z axis movement speed | 800/150mm |
X/Y axis movement and velocity | X/Z fastest moving speed | 28/28m/min |
Maximum input power | 5.5KW | |
Overall dimensions | 2200*1600*1900mm | |
Standard configuration attachment table | Machine weight | 2500kg |
CNC system | Taiwan system | |
Spindle servo motor | Yaskawa / Delta | |
X/Z servo motor | Yaskawa / Delta | |
Screw | HIWIN / PMI C3 | |
Guide | HIWIN / PMI P class | |
Bed slope | 30 degrees | |
Frame | Resin sand casting / steel | |
Feeding device (optional) | One set | |
Feeding device (optional) | One set | |
Cutting machine (optional) | Chain type cutting machine | |
Iron bucket (optional) | Small hand push iron bucket |
