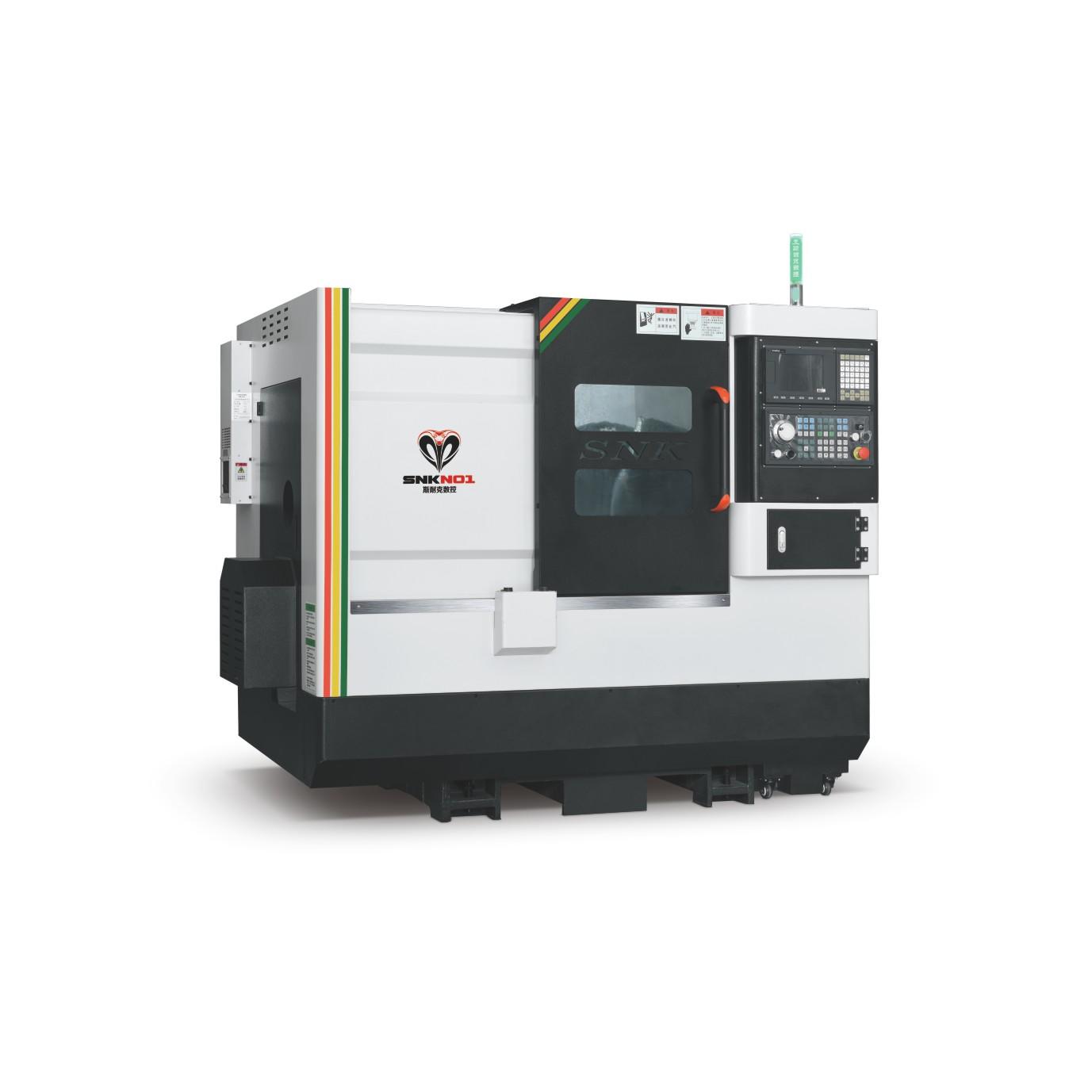

![G[**]NG TYPE CNC L[**]THE M[**]CHINE SNK-46](http://snkcnc.pic.dgsxvip.com/FkU8h1vJWxNBRW5ioA1G6TvyGClm?imageView2/0/q/80/ignore-error/1)
![G[**]NG TYPE CNC L[**]THE M[**]CHINE SNK-46](http://snkcnc.pic.dgsxvip.com/FkU8h1vJWxNBRW5ioA1G6TvyGClm?imageView2/1/w/320/h/320/q/80/ignore-error/1)
![G[**]NG TYPE CNC L[**]THE M[**]CHINE SNK-46](http://snkcnc.pic.dgsxvip.com/FspjbavSlqR9RDdFwovMuu10nPJE?imageView2/1/w/320/h/320/q/80/ignore-error/1)

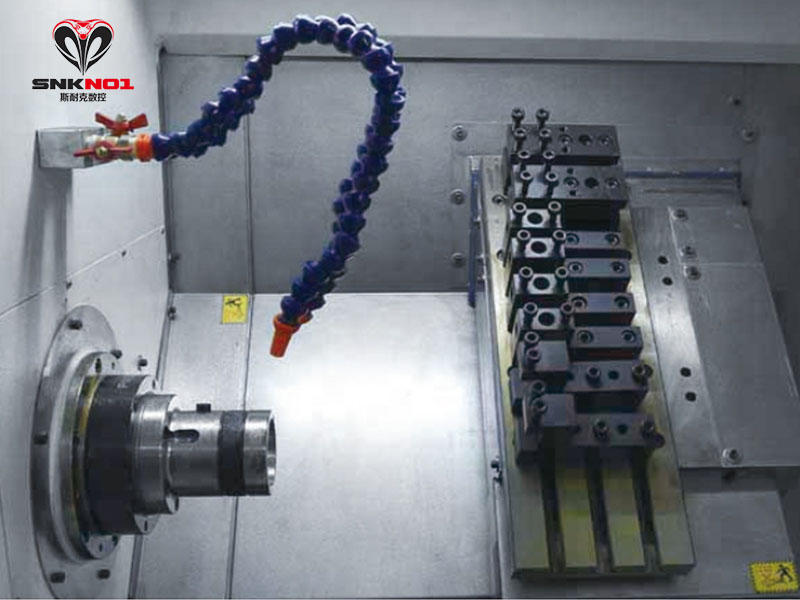

![G[**]NG TYPE CNC L[**]THE M[**]CHINE SNK-46](http://snkcnc.pic.dgsxvip.com/FkCWNp_4pOfvitYvqXaVjV9NLr8I?imageView2/1/w/320/h/320/q/80/ignore-error/1)
1. It has a strong adaptability to the processing object, adapts to the characteristics of single-piece production of mold and other products, and provides a suitable processing method for mold manufacturing.
2, high machining accuracy and stable machining quality.
3. Multi-coordinate linkage can be used to process complex parts.
4, when machining parts change, it is generally necessary to change the NC program and save production preparation time.
5. The machine tool has high accuracy and large rigidity. It can choose the favorable processing quantity and high productivity.
6, high degree of automation of machine tools, can reduce labor intensity;
7, It is conducive to the modernization of production management. NC machine tools use digital information and standard code to process and transmit information, and the computer control method lays a foundation for computer aided design, manufacturing and management integration.
G[**]NG TYPE CNC L[**]THE M[**]CHINE
CODE | ITEM | UNIT | SPECIFIC[**]TION |
1 | SPINDLE BORE | mm | φ55 |
2 | SWING CYLIDER BORE DI[**]METER | mm | φ45 |
3 | M[**]XMIUM B[**]RSTOCK DI[**]METER | mm | φ45 |
4 | M[**]XMIUM SWING OVER BED | mm | φ360 |
5 | HIGH BETWEEN TURRET [**]ND SPINDLE CENTER | mm | 125 |
7 | SPEINDLE MODLE | [**]2-5 | |
8 | BED STRUCTURE | ∠45 SLOT C[**]STING | |
9 | SPINDLE M[**]XMIUM SPEED | r/min | 4000 |
10 | SPEED R[**]NGE | r/min | 50-4000 |
11 | X-[**]XIS TR[**]VEL | mm | 800 |
12 | Z-[**]XIS TR[**]VEL | mm | 280 |
13 | NUMBER OF TOOLS | 12 | |
14 | X/Y [**]XIS F[**]ST MOVING SPEED | m/min | 20-28 |
15 | REPE[**]T POSITIONING [**]CCUR[**]CY,ELLIPITICITY | mm | 0.003 |
16 | SPINDLE MOTOR | kW | 5.5kW V[**]RI[**]BLEFREQUENCY MOTOR(OPTION[**]L) |
17 | M[**]CHINE WEIGHT | kg | 2300 |
18 | M[**]CHINE TOT[**]L POWER/ [**]CTU[**]L POWER USED | kW | 10kW/5kW |
19 | M[**]XHINE SIZE(LENTH*WIDE*HEIGHT) | mm | 2130×1350×1640 |
CODE | ITEM | BR[**]ND | Quantity | |
1 | CONTROL SYSTEM | SYNTEC 21TB | 1 | |
2 | ELECTRIC SYSTEM CONTROL | X-[**]XIS | Y[**]SK[**]W[**] SERVO MOTOR1.5kW/WITH DRIVER | 1 |
Z-[**]XIS | Y[**]SK[**]W[**] SERVO MOTOR1.5kW/WITH DRIVER | 1 | ||
SPINDLE | MIGE SERVO MOTOR 5.5KW | 1 | ||
3 | FEEDING SYSTEM | X-[**]XIS | T[**]IW[**]I HIWIN SCREW | 1 |
T[**]IW[**]N HIWIN LINE[**]R GUIDEW[**]Y | 2 | |||
X-[**]XIS | T[**]IW[**]N HIWIN SCREW | 1 | ||
T[**]IW[**]N HIWIN LINE[**]R GUIDEW[**]Y | 2 | |||
4 | C[**]STING | M[**]CHINE C[**]STING SE[**]T | 1 | |
5 | SPINDLE | T[**]IW[**]N KENTURN HIGH SPEED B[**]RREL SPINDLE | 1 | |
6 | LUBRIC[**]TION SYSTEM | [**]UTOM[**]TIC LUBRIC[**]TION SYSTEM | 1 | |
7 | COOLING SYSTEM | INTER[**]L 250KW HIGH PRESURE W[**]TER PUMP | 1 | |
8 | HYDR[**]ULIC SYSTEM | 1.5KW HYDR[**]ULIC PUMP MOTOR ,STRONG [**]IR COOLING SYSTEM | 1 | |
9 | TOOL HOLDER | DEPONDS ON PRODUCTS DEM[**]ND | 1 | |
10 | CL[**]MP | PULL ROD,CL[**]MPING CHUCK,EL[**]STIC CHUCK | 1 | |
11 | HYDRULIC SWING CYLINDER | T[**]IW[**]N 6 INCH, [**]DJUSTING SCREW,W[**]TER RECEIVING BOX | 1 | |
12 | M[**]CHINE OPERT[**]TION M[**]NU[**]L | 1 | ||
13 | M[**]CHINE CONTROL OPERT[**]TION M[**]NU[**]L | 1 | ||
14 | M[**]CHINE PROGR[**]M OPER[**]TION M[**]NU[**]L | 1 | ||
