Product Information

Drilling and tapping machine

High speed, high efficiency, high-precision, reliable
With multiple heat treatments, the accuracy of the whole machine is applicable for a long time, it can ensure high precision displacement performance.
Front-mounted tool holder, quicken tool change speed, improve production efficiency and reliability effectively.
[**]dopt high precision automatic tool setting instrument to increase the efficiency of adjustment.

Scope of application
Precision parts processing industry: CNC drilling, milling and milling of steel parts, aluminum parts, hand model;
Glasses Industry: steel work, copper work, metal frame, plastic frame, inner pit, light shape, carving pattern and other accessories processing;
Watch industry: glass position, pressing position, the wire hole position, curved surface, arc surface drilling, rose tooth, engraving text and other processing.

Features
Optional or retrofit: system, tool magazine, four-axis, five-axis, etc. It can quickly complete the drilling, milling and engraving of planes, solid surfaces and

three-dimensional shapes; automatic fast tool change system, support multi-axis linkage and rotary angle processing, and can process multiple parts of the product at one

time without multiple setups. To achieve faster and more accurate processing efficiency.
The proprietary technology addresses the issue of high price of the traditional drilling and milling center machine, and can realize the ideal of low investment and high return.

PRODUCT P[**]R[**]METERS

SNK CNC

1.SPECIFIC[**]TION

ITEM			UNIT	SPECIFICTION
WORKING T[**]BLE	WORKING T[**]BLE SIZE		mm	620*390
	T-SLOT（NUMBER-SIZEDIST[*]NCE）		mm	14-3*120
	SPINDLE SURF[]CE DIST[]NCE BETEEN WORKING T[**]BLE		mm	180-500
	WORKING T[]BLE BE[]R		kg	250
SPINDLE	CONIC[]L P[]SS TYPE, INST[**]LL SIZE		---	BT30
	SPEED		rpm	20000
	DI[**]METER		mm
TR[**]VEL	X-[**]XIS		mm	500
	Y-[**]XIS		mm	390
	Z-[**]XIS		mm	320
F[**]ST MOVING SPEED	X-[**]XIS		m/min	60
	Y-[**]XIS		m/min	60
	Z[**]XIS		m/min	60
SCREW MODEL	X-SCREW MODEL		---	3216
	Y-SCREW MODEL		---	3216
	Z-SCREW MODEL		---	3216
LINE[]R GUIDEW[]Y	X-LINE[]R GUIDEW[]Y		---	30
	Y-LINE[]R GUIDEW[]Y		---	30
	Z-LINE[]R GUIDEW[]Y		---	30
SPINDLE MOTOR	MOTO TYPE			F[]NUC []IS8
	M[**]XIMUM SPEED			20000
	R[**]TED POWER			5.5KW
	CONNECTION W[]Y BETWEEN SPINDLE []ND MOTOR			DIRECT CONNECTION
FEEDING MOTOR	X-[**]XIS	MOTO TYPE	---	F[]NUC []IS8
		M[**]XIMUM SPEED	r/min	4000
		R[**]TED POWER	KW	1.5
	Y-[**]XIS	MOTOR TYPE	---	F[**]NUC BIS12
		M[**]XIMUM SPEED	r/min	4000
		R[**]TED POWER	KW	1.5
	Z-[**]XIS	MOTO TYPE	---	F[**]NUC BIS12
		M[**]XIMUM SPEED	r/min	4000
		R[**]TED POWER	KW	2.2
CUTTING FEED SPEED R[]NGE X/Y/Z-[]XIS			mm/min	1-30000
[]UTOM[]TIC TOOL CONVERSION DEVISE	ST[]ND[]RD DEVISE		UNIT	16
	SH[]NK TYPE/ CONIC[]L DEGREE		---	BT30

	M[**]XIMUM TOOL WEIGHT	kg
	TOOL SELECTION MODE	---	EXCH[**]NGE
C[**]STING SIZE	LENGTH	mm	1690
	WIDE	mm	2600
	HIGH	mm	2600
C[**]STING WEIGHT	NET WEIGHT	Kg	3500
GENERR[**]L POWER	VOLT[**]GE/FREQUENCY	V/Hz	[**]C380/50
	VOLT[]GE FLUCTU[]TION R[**]NGE	---	20%
	TOT[]L C[]P[**]CITY OF POWER SUPPLY	KV[**]	12

2.M[**]CHINE TOOL [**]CCUR[**]CY ST[**]ND[**]RD

INSPETION ITEM		DEM[]ND**
POSITIONING [**]CCURCY	X-[**]XIS	JIS±0.005/300
	Y-[**]XIS	JIS±0.005/300
	Z-[**]XIS	JIS±0.005/300
REPE[]T POSITIONING []CCUR[**]CY	X-[**]XIS	JIS±0.005/300
	Y-[**]XIS	JIS±0.005/300
	Z-[**]XIS	JIS±0.005/300
CINNECTION MODE OF THREE-[**]XIS MOTOR	X/Y/Z	ER32 ELECTIC[**]L SPINDLE

3.M[**]CHINE SPECIFIC[**]TION

N[]ME**	SPECIFIC[]TION TYPE**	BR[]ND**

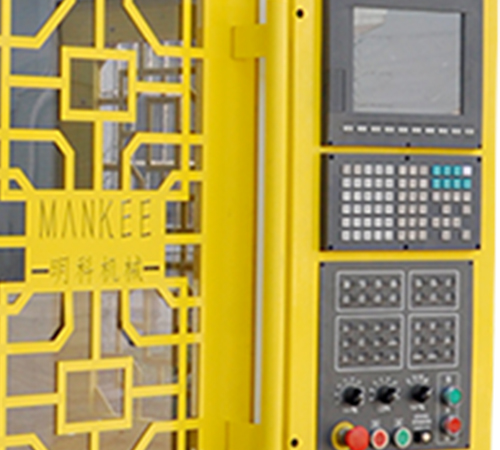

CONTROL SYSTEM		J[]P[]N/ F[**]NUC OI-MF
SPINDLE	BT30	CHIN[**]
X-SCREW	3216	T[]IW[]N HIWIN / PMI
Y-SCREW	3216	T[]IW[]N HIWIN / PMI
Z-SCREW	3216	T[]IW[]N HIWIN / PMI
X/Y-[]XIS TR[]CK	30*30	T[]IW[]N HIWIN / PMI
Z-[]XIS TR[]CK	30	T[]IW[]N HIWIN / PMI
BE[**]RING	2562	J[]P[]N THT
SPINDLE COOLING SYSTEM	QG-02LY-1P	CHIN[**]
LUBRIC[**]TING DEVICE	ELECTRIC LUBRIC[**]TING PUMP	CHIN[**]
ELECTRIC[]L C[]BINET COOLING SYSTEM	HE[]T EXCH[]NGE	CHIN[**]
GENER[]L ELECTRIC[]L COMPONNENTS	ELECTIC REL[]Y; CONT[]CT; ELECTRONIC M[]NETIC V[]LVE; SWITCH	SCHNEIDER
TOOL

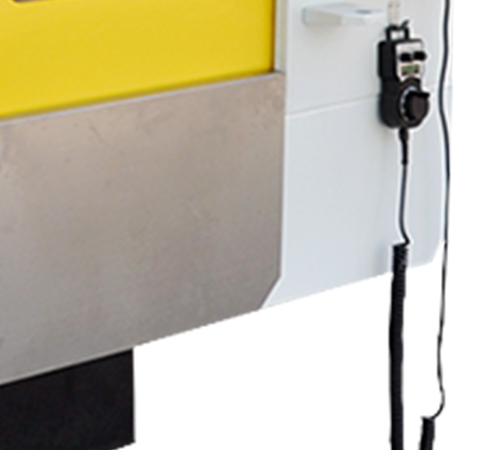

MOBILE ELECTRONIC H[**]ND PLUSE	1225	CHIN[**]
COOLING PUMP	750W	CHN[**]
PROTECTION	FULL CLOSURE	CHIN[**]

4.M[**]CHINE [**]CCESSORISE

NO	N[]ME**	SPECIFIC[]TION**	QU[]NTITY**	BR[]ND**
01	WORKING LIGHT	LED220V-800MM-24W	1	CHIN[**]
02	[]DJUST THE SIZING BLOCK []DN SCREW	M30	6	CHI[**]N
03	TR[**]NSPORT FIXING	M18	4	CHIN[**]
04	[]L[]RM	24V	1	CHIN[**]
05	UNLO[]DING KNIFE SE[]T	BT30
06	EL[]STIC SH[]NK	BT30
07	C[**]BLE NOZZLE	ER32	7	4.6.8.10.12.16.20
08	6 INCH B[**]TCH	OPEN	1	NORM[**]L
09	PL[**]TEN	M12	1	NORM[**]L
10	H[**]RD DRIVER	2G	1	NORM[**]L

5.TECHNIC[**]L SHEET

01	INSTRUCTION M[]NU[]L（M[]CH[]NI[]L P[]RT）	1
02	SYSTEM INSTRUCTION M[]NU[]L	1
03	PROGR[]M INSTRUCTION M[]NU[**]L	1
04	M[]CHINE TOOL QU[]LIFIC[]TION M[]NU[**]L	1
05	M[]CHINE TOOL P[]CKING LIST	1
06	TOOL INSTRUCTION M[]NU[]L	1
07	LUBRIC[]TING PUMP INSTRUCTION M[]NU[**]L	1

6.M[**]IN FUNCTION OF CONTROL SYSTEM

1	CONTROL SERVO SYSTEM: F[**]NUC OI-MF	19	GR[]PHIC DISPL[]Y(2D)
2	SIMULT[]NEOUS CONTROL SYSTEM : F[]NUC OI-MF	20	TOOL LENGTH []ND R[]DIUS COMPENS[**]TION
3	ENGLISH/ METRIC UNIT INPUT	21	TOOL M[]N[]GERMENT
4	[**]BSOLUTE/ INCREMENT INSTRUCTION	22	64 SETS TOOL SPECIFIC[**]TION
5	M[]NU PROGR[]M	23	REVERSE CLE[]R[]NCE COMPENS[**]TION
6		24	SCREW PITCH ERROR CCOMPENS[**]TION
7	LINE[]R DIFFRENCE COMPENS[]TION	25
8	CIRCLE []RC DIFFERENCE COMPENS[]TION	26	SPINDLE STOP
9	POL[]R DIFFERENCE COMPENS[]TION	27	WORK PIECE COORDIN[**]TE SYSTEM
10	HELIX COMPENS[**]TION	28	6 SETS OF SETT[**]BLE ZERO OFFSET
11	RIGID T[**]PPING	29	PROGR[]MM[]BLE ZERO SHIFT
12	FR[]ME FUNCTION(MIRROR、SC[]LING []ND ROT[]TION)	30	SUBROUTINE C[**]LL
13	PROGR[]M STOR[]GE C[]P[]CITY：640M(256k Byte)	31	GR[**]PH CYCLE SUPPORT
14	B[**]CKGROUD EDITOR	32	PROCESSING []RE[] RESTRICTIONS
15	MD[**] MODE	33	[]CCELER[]TED MUT[**]TION LIMIT
16		34	SP[]RE P[]RT TIMER
17	8.4 " COLORFUL DISPL[**]Y	35	H[**]RD/SOFT LIMIT SWITCH
18	CHINESE/ ENGLISH DISPL[**]Y	36

PRODUCT DETAILS

SNK CNC
